***5 Year Total Replacement Warranty***

Features

·  Oil immersed gear reducer

·  Electronic limit switch

·  Brake inside

·  Full auto release

·  Auto ­stop when obstruction

·  Auto close function can be set

·  Remote control with rolling code 433.92Mhz

·  Manual release chain when power supply failure

·  Wiring terminals for alarm lamp, infrared photocell, etc.


* Can be operated by Wireless Door Opener -TG100A (open & close real time video monitoring your door with your smartphone ANYTIME ANYWHERE in the world)



Standard Package includes

·  KG50 Industrial Door Operator

·  1 x Complete Set of Mounting kit

·  1 x 31.75mm Output Shaft

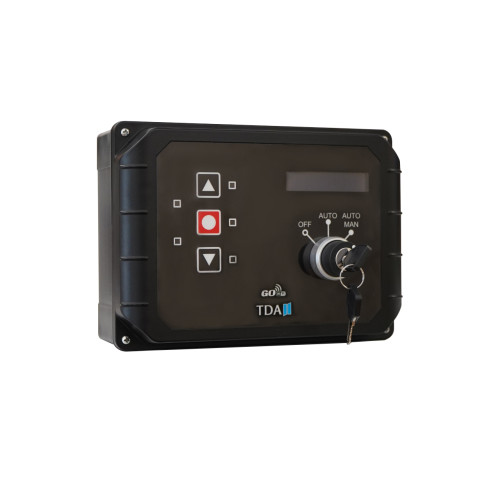

·  1 x Electric Control Unit with 1.5m power cable

·  1 x 5m connecting cables with aviation plug

·  2 x Remote Control

·  Installation Manual

·  5 Year Total Replacement Warranty


Download Brochure







Technical Data
Power Supply AC240V 1ph
Motor Power 300W
Output Torque 50N•m
Output Speed 32 rpm
Max. Travel Distance 28 Cycles
Output Shaft Aperture Φ31.75 mm
Max. Door Size 18 m²
Duty Cycles High Duty
IP Rating IP54
Additional Information
Net Weight 12KG
Dimensions 100 x 233 x 360mm

KG50 - Industrial Door Operator

  • Product Code:KG50
  • Availability:In Stock
